Gear Driven Pellet Mill Poultry Feed Maker Machine Automatic Cattle Feed Plant

Basic Information
Place of Origin: Wuxi, China
Model Number: SZLH
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Type: Gear Drive Condition: Brand New
Voltage: 380V, Three Phase Function: Producing Animal Feed Pellets
Application: Livestock Feeds, Poultry Feeds, Fish Feeds Color: Customized
Warranty: One Year Product Name: Pellet Machine, Pellet Mill
High Light:

Gear Driven Pellet Mill

,

Poultry Feed Maker Machine

,

automatic cattle feed plant


Product Description

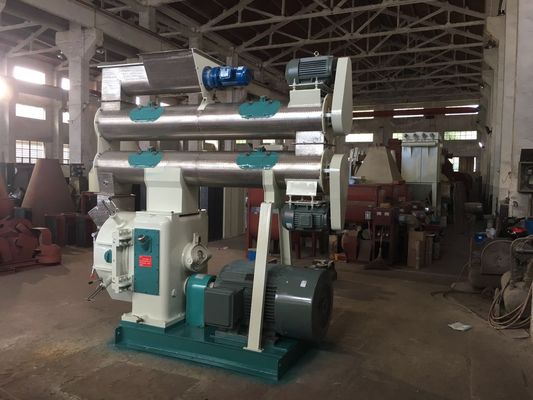

Gear Driven Pellet Mill Poultry Feed Maker Machine Automatic Cattle Feed Plant



Model Inner diameter
of die
Pellets Capacity Main motor power Feeder motor power Conditioner motor power
SZLH-420 ¢ 420mm ¢1.5-¢8mm 1-12t/H 90/110KW 1.5KW 2.2KW
SZLH-508 ¢ 508mm ¢1.5-¢8mm 4-20t/H 110/132/160 1.5KW 5.5KW
SZLH-528 ¢ 528mm ¢1.5-¢9mm 4-21t/H 110/132/160 1.5KW 7.5KW
SZLH-578 ¢ 578mm ¢1.5-¢10mm 4-22t/H 160/180/200 2.2KW 7.5KW



Customized solution

Optional of different conditioners and different ring die mounting patterns to meet different production demands.



Functional conditioner

long conditioner makes long time heat preservation to promote gelatinization.



Superior pellet quality

Long retention time in conditioner which contributes to sufficient mixing and gelatinization and resulting in hygienic and consistent good quality of shrimp feed.



High output

Optimized feed-to-pellet deflector structure, widened ring die working area to enable consistent high output and low energy consumption.



User-friendly

Optional electric lift for die change and roller adjustment, quick and precise operation; optional auto-lubrication system, saved labor.



○SZLH series pellet mill uses high accurate gearwheel drive, and quick detachable hold hoop type, high driving efficiency & stability, low noise.
○Stainless reinforced conditioner, Frequency inverter control feeder
○International advanced compensation type S-S spring coupling
○High performance tubular magnet
○Conditioner adopts advanced pipeline system and inlet pressure regulating valve


Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
