Ringdie Belt Driven Pellet Mill Pellet Manufacturing Machine Poultry Feed Lines

Basic Information
Place of Origin: Wuxi, China
Model Number: HKJ
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Product Name: Pellet Machine, Pellet Mill Color: Customized
Voltage: 380V, Three Phase Condition: Brand New
Function: Producing Animal Feed Pellets Application: Livestock Feeds, Poultry Feeds, Fish Feeds
Warranty: One Year Type: Belt Drive
High Light:

Ringdie Belt Driven Pellet Mill

,

Pellet Manufacturing Machine

,

Poultry Feed Lines


Product Description

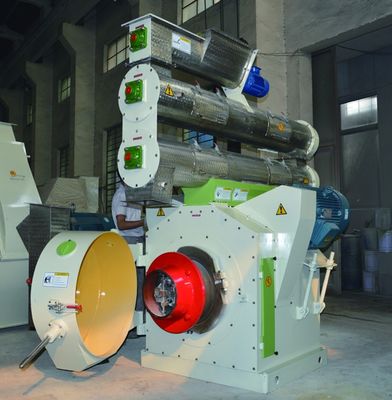

Ringdie Belt Driven Pellet Mill Pellet Manufacturing Machine Poultry Feed Lines



Model Innder diameter
of die
Pellets size Capacity Main motor power Feeder motor power Conditioner
Motor power
HKJ-32 ¢ 320mm ¢1.5-¢8mm 2-3t/H 22KW*2 1.1KW 1.1KW
HKJ-35 ¢ 350mm ¢1.5-¢8mm 3-5t/H 30KW*2 1.1KW 1.5KW
HKJ-40 ¢ 400mm ¢1.5-¢8mm 5-8t/H 45KW*2 1.1KW 1.5KW
HKJ-450 ¢ 450mm ¢1.5-¢8mm 5-12t/H 45KW*2/55KW*2 1.5KW 2.2KW
HKJ-480 ¢ 480mm ¢1.5-¢8mm 5-20t/H 45KW*2/75KW*2 1.5KW 3KW



High efficiency

Optimized area-to-power ratio of ring die, maximum output; 2-motor belt–drive featuring smooth running and low noise, optimal energy efficiency.



User-friendly operation

Wide product range: Φ1.5mm~Φ8mm pellets (optional); easy die change and roller adjustment, quick and precise operation, low labor intensity.



Good pellet quality

Efficient conditioner, excellent pellet formability and durability, easy adjustable cutter.



Distinguished pelleting stability

Unique double-timing belt driving and cooling system for motors output same torque simultaneously, sectional ring die clamper for fixing ring die onto rotor firmly, widened supporting area of main shaft are enabling long-time stable production.



◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.



Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
