90 Degree Turning Farming Chicken Egg Hatchery Machine

Basic Information
Place of Origin: ONELYE
Brand Name: ONELYE
Certification: ONELYE
Model Number: ONELYE
Minimum Order Quantity: 1 set
Packaging Details: Nude
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
Capacity: 16800 Chicken Eggs Votage: 380V/50HZ
Usage: Chicken, Duck, Goose, Pigeon, Quail, Other Birds Hatching Rate: 98%
Egg Turning Model: 90 Degree Application: Middle And Large Chicken Farm
Warranty: 1 Year
High Light:

90 degree egg hatchery machine

,

farming egg hatchery machine

,

farming chicken hatchery machine


Product Description

single stage 16800 egg incubator setter hatchery



we customize incubator for any animal eggs of any capacity.



Model

Capacity

(chicken eggs)

Number of Trolley Number of Tray Max.
Power
Outside Size
(mm)
setter OTS-168 16800 4 112 5.3kw 3360x2300x2200
hatcher OTH-168 16800 4 112 5.3kw 3360x2300x2200

A range of innovative single-stage incubators to obtain maximum output at minimum costs during the entire lifetime of your hatchery.

Main technology index of machine:
Temperature precision display: 0.01℃
Range of temperature controlled: 35--39℃
Precision of temperature controlled: 0.1℃
Humidity precision display: 1%RH
Range of humidity controlled: 30-75%RH
Precision of humidity controlled: 2%RH
Angle of eggs-turning: 41-45°
Setting time of eggs-turning: 0-190minutes



Main capability

Digital displaying of temperature, humidity and turning frequency
Full automatically temperature controlling
Full automatically humidity controlling
Full automatically eggs turning
Full automatically alarming
Full automatically cooling and damper system
Back emergency system



FULL TECHNOLOGY AND FUNCTION
Digital temperature, humidity and turning frequency displaying.
Automatic turning system tilting the eggs 45º once per two hour (Setter Only). According your actual request,
you can set turning interval time you need.
Big middle stirring fans with automatic heating and roller humidifying system.
Backup emergency and alarming system for insurance using.
Automatic air cooling system and automatic ventilator.
Water-proof light inside.
Made of polyester, double wall construction for a perfect insulation.
Operates on 380V, 50HZ, 3Phases
Trolley egg-frame for easy operating, inside disinfecting and cleaning.





FEATURES
• Joint control of temperature, moisture and dampers to reduce temperature fluctuation.
• By the new heating method, the incubator can adjust heat automatically according to the environment temperature and

   the embryo growth cycle, keeping a stable temperature inside.
• With the damper hover control technology, the incubator can control ventilation accurately.
• New ventilation structure- Exhaust, air intake and enforced air cooling ducts are isolated from one another to replenish

   oxygen and dissipate heat at the late stage of incubation.
• Auto-monitor temperature, dampers, stirring fans, egg turning and power supplies. When a disorder appears, it can

   send a sound/light alarm.
• The user can start the emergency control system to ensure incubation when the main control system goes wrong.

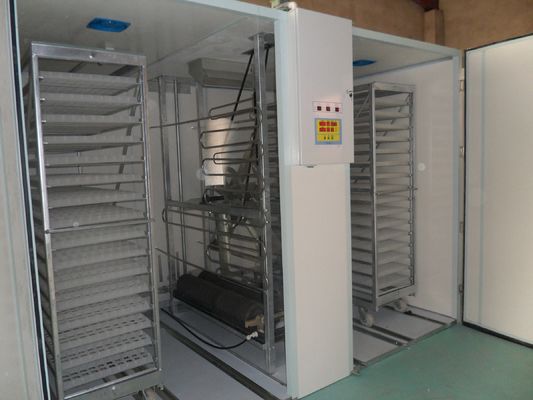

90 Degree Turning Farming Chicken Egg Hatchery Machine 0




FAQ

1. How do we go through our customers order?

We do our best to serve our customer, update every step of the order, you will wait for your incubator in relax.

1. The time of sent out: when payment have been done, we will prepare the order within one week then send

it out from our warehouse.

2. Incubator will be checked before sending out. Make sure incubator work properly.

3. Incubator packing materials: incubator packed in carton or wooden case for safe transpotation

2. How do you guarantee your after-sale service?

We are more concerned about after-sales service than you. We can always keep good relationship with our

customers for six years, not only because our incubator favoured by our customer, but also our service.

A. When you purchase an incubator, an instruction manual explain every step of the incubation process and the

important points.

B. We have 1 year warranty on all the spare parts, free incubator parts to support your broken damage. Any egg

incubator problems you have, welcome email or call us. We will provide our best professional service for you

C. As part of after-sale service, we guide and provide information or training on the incubation procedure and

business advice that you need, so that you will have hatchery
