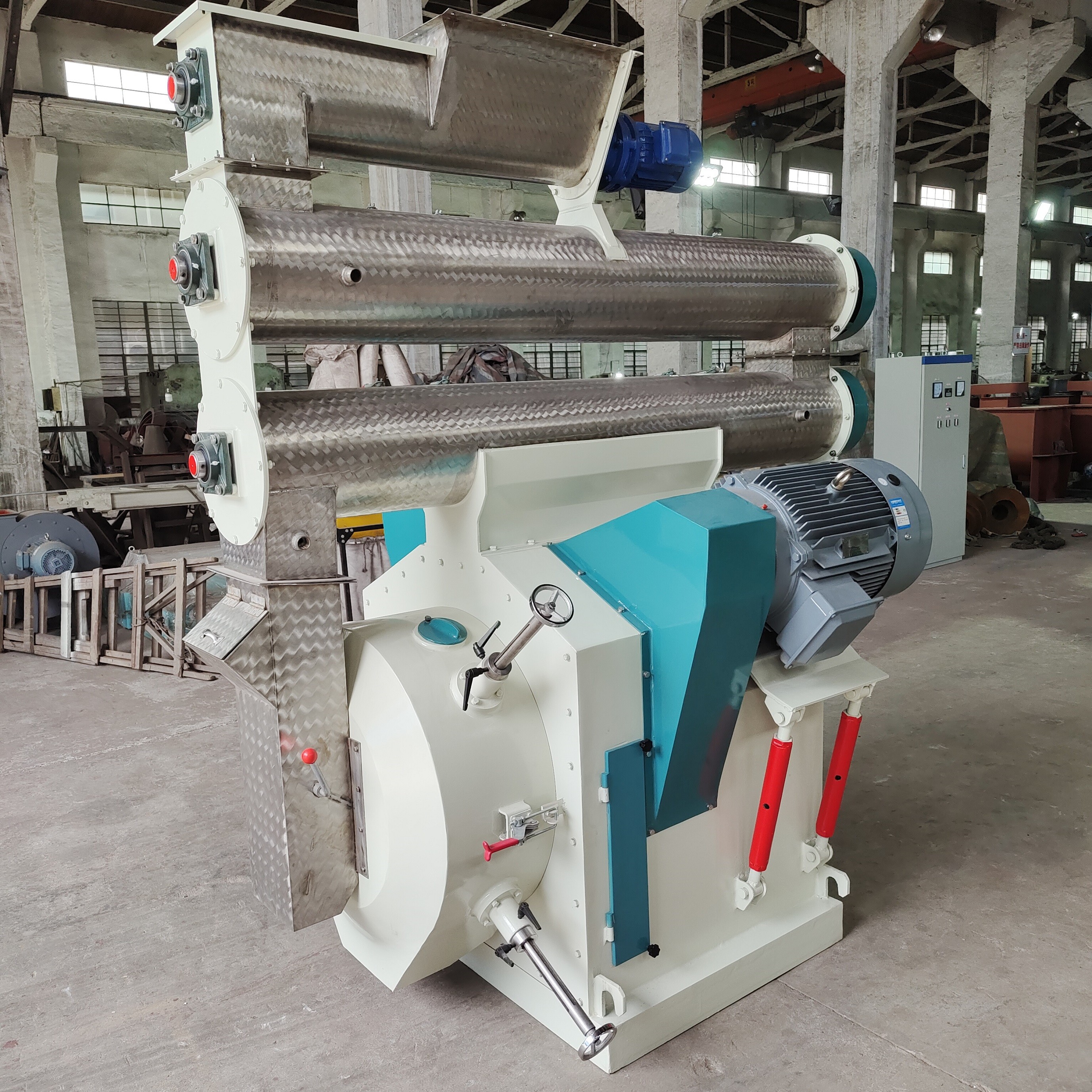

3 To 5tph 30kw Ring Pellet Mill Poultry Chicken Feed Processing Machine

Basic Information
Place of Origin: Wuxi, China
Model Number: HKJ-35
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Product Name: Pellet Machine, Pellet Mill Application: Livestock Feeds, Poultry Feeds, Fish Feeds
Function: Producing Animal Feed Pellets Voltage: 380V, Three Phase
Power: 30kw*2 Capacity: 3-5t/h
Color: Customized Type: Belt Drive
High Light:

30kw Ring Pellet Mill

,

5tph Ring Pellet Mill

,

Ring Die Sawdust Pellet Machine


Product Description

3 To 5tph 30kw Ring Pellet Mill Poultry Chicken Feed Processing Machine



Model Innder diameter
of die
Pellets size Capacity Main motor power Feeder motor power Conditioner
Motor power
HKJ-32 ¢ 320mm ¢1.5-¢8mm 2-3t/H 22KW*2 1.1KW 1.1KW
HKJ-35 ¢ 350mm ¢1.5-¢8mm 3-5t/H 30KW*2 1.1KW 1.5KW
HKJ-40 ¢ 400mm ¢1.5-¢8mm 5-8t/H 45KW*2 1.1KW 1.5KW
HKJ-450 ¢ 450mm ¢1.5-¢8mm 5-12t/H 45KW*2/55KW*2 1.5KW 2.2KW
HKJ-480 ¢ 480mm ¢1.5-¢8mm 5-20t/H 45KW*2/75KW*2 1.5KW 3KW



High output

Optimized feed-to-pellet deflector structure, widened ring die working area to enable consistent high output and low energy consumption.



User-friendly

Optional electric lift for die change and roller adjustment, quick and precise operation; optional auto-lubrication system, saved labor.



Power drive system for optimal energy efficiency

The robust two-motor belt-drive system allows for smooth operation, low noise and optimal energy utilization. The improved drive system simplifies maintenance.



Cost-efficiency alternative thanks to small footprint, excellent performance

Superior compact design extremely slashes investment cost, enabling further line capacity expansion.

Low operation cost thanks to easy maintenance, resulting in increased up time.



◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.



Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
