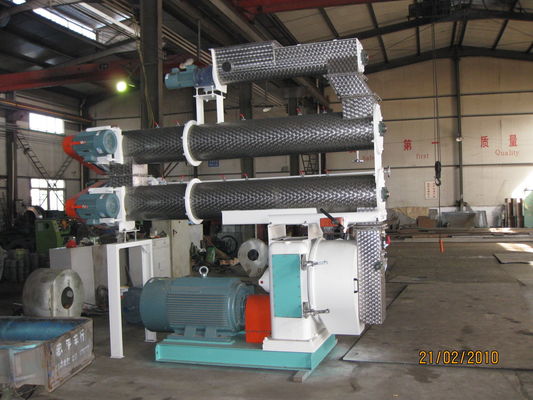

18th 132kw Ring Die Wood Pellet Machine Feed Mill Equipment

Basic Information
Place of Origin: Wuxi, China
Model Number: SZLH528
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Product Name: Pellet Machine, Pellet Mill Application: Livestock Feeds, Poultry Feeds, Fish Feeds
Function: Producing Animal Feed Pellets Voltage: 380V, Three Phase
Power: 110/132/160kw Capacity: 18t/h
Color: Customized Type: Gear Drive
High Light:

132kw Ring Die Pellet Machine

,

18th Ring Die Pellet Machine

,

18th Ring Die Wood Pellet Mill


Product Description

18th 132kw Ring Die Wood Pellet Machine Feed Mill Equipment





Model Inner diameter
of die
Pellets Capacity Main motor power Feeder motor power Conditioner motor power
SZLH-420 ¢ 420mm ¢1.5-¢8mm 1-12t/H 90/110KW 1.5KW 2.2KW
SZLH-508 ¢ 508mm ¢1.5-¢8mm 4-20t/H 110/132/160 1.5KW 5.5KW
SZLH-528 ¢ 528mm ¢1.5-¢9mm 4-21t/H 110/132/160 1.5KW 7.5KW
SZLH-578 ¢ 578mm ¢1.5-¢10mm 4-22t/H 160/180/200 2.2KW 7.5KW



Cost-efficiency alternative thanks to small footprint, excellent performance

Superior compact design extremely slashes investment cost, enabling further line capacity expansion.

Low operation cost thanks to easy maintenance, resulting in increased up time.



Customer-oriented design

The optionally available die lift for the installation of ring die allows quick die change to the specific needs of the customer.



GEAR-DRIVE FEED PELLET MILL

Gear-drive for reliable production

High output and energy-efficiency

Safe and reliable

User-friendly and easy operation



○SZLH series pellet mill uses high accurate gearwheel drive, and quick detachable hold hoop type, high driving efficiency & stability, low noise.
○Stainless reinforced conditioner, Frequency inverter control feeder
○International advanced compensation type S-S spring coupling
○High performance tubular magnet

○Conditioner adopts advanced pipeline system and inlet pressure regulating valve
