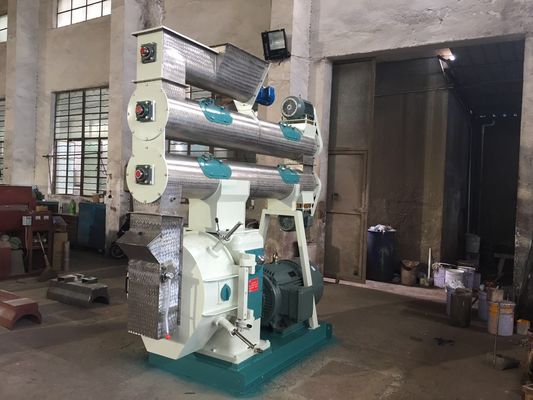

Gear Driven Pellet Mill Animal Chicken 1th Feed Pellet Production Line

Basic Information
Place of Origin: Wuxi, China
Model Number: SZLH
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Product Name: Pellet Machine, Pellet Mill Voltage: 380V, Three Phase
Function: Producing Animal Feed Pellets Application: Livestock Feeds, Poultry Feeds, Fish Feeds
Color: Customized Type: Gear Drive
Capcaity: 1-20t/h Warranty: One Year
High Light:

1th feed pellet production line

,

chicken feed pellet production line

,

Gear Driven Pellet Mill


Product Description

Gear Driven Pellet Mill Animal Chicken 1th Feed Pellet Production Line





Model Inner diameter
of die
Pellets Capacity Main motor power Feeder motor power Conditioner motor power
SZLH-420 ¢ 420mm ¢1.5-¢8mm 1-12t/H 90/110KW 1.5KW 2.2KW
SZLH-508 ¢ 508mm ¢1.5-¢8mm 4-20t/H 110/132/160 1.5KW 5.5KW
SZLH-528 ¢ 528mm ¢1.5-¢9mm 4-21t/H 110/132/160 1.5KW 7.5KW
SZLH-578 ¢ 578mm ¢1.5-¢10mm 4-22t/H 160/180/200 2.2KW 7.5KW



GEAR-DRIVE FEED PELLET MILL

Gear-drive for reliable production

High output and energy-efficiency

Safe and reliable

User-friendly and easy operation





Features:

1.This pellet mill is a key equipment for producing pellet feed, with high output,good performance,low energy consumption,low noise. It is the ideal equipment for pressing poultry,livestock and fish pellet feed.

2.The feeding system adopts stepless speed changing motor control, adjust speed conveniently and reliably, to make pellet mill in the best working condition all the time.



It can produce various kinds of high quality feed pellets for chicken, cattle, fish, shrimp etc.



Pellets diameter: 1.5mm-8mm

Pellets shaping rate: ≥95%

Pellets stability in water: ≥20Min

Roller working temperature: ≤85℃

Steam working pressure: 0.1-0.4Mpa



○SZLH series pellet mill uses high accurate gearwheel drive, and quick detachable hold hoop type, high driving efficiency & stability, low noise.
○Stainless reinforced conditioner, Frequency inverter control feeder
○International advanced compensation type S-S spring coupling
○High performance tubular magnet
○Conditioner adopts advanced pipeline system and inlet pressure regulating valve


Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
