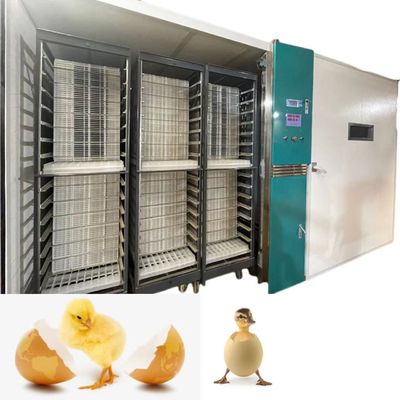

Hatching Rate 98% Large Scale Automatic Chicken Egg Incubator 19200

Basic Information
Place of Origin: ONELYE
Brand Name: ONELYE
Certification: ONELYE
Model Number: ONELYE
Minimum Order Quantity: 1 set
Packaging Details: Nude
Payment Terms: T/T
Supply Ability: 30 sets per month
Detail Information
NAME: Automatic Egg Incubator Outside Size (mm): 3360x2300x2400
Votage: 380V/50HZ Max. Power: 5.7kw
Egg Turning Model: 90 Degree Hatching Rate: 98%
Incubate The Eggs: Yes Incubate The Duck: Yes
Incubate The Birds: Yes
High Light:

19200 Automatic Chicken Egg Incubator


98% Automatic Chicken Egg Incubator


Large Scale Automatic Egg Incubator

Product Description

Hatching rate 98% Large-scale Chicken Egg Hatching Machine19200 Automatic Egg Incubator


Preparation before incubation
Incubation equipment is one of the important equipment in modern chicken breeding equipment, and the whole set of incubation equipment includes incubators, hatchers and other supporting devices.
There are many types of incubators, although the degree of initiative and capacity are different, but their structural principles are similar, and they are mainly composed of several parts, such as the body, active temperature control device, active humidity control device, active egg turning device and ventilation device. Box type incubator (also known as electric incubator) is more used, this type of incubator according to its capacity can be divided into large, medium and small 3 specifications, its capacity is 50,000 ~ 100,000 or larger, 10,000 ~ 50,000, less than 10,000, in small and medium-sized incubators, hatching and hatching two parts are installed in the same body.

• All EPS sandwiched panel for incubator shell, it is made of environment-friendly materials with EPS foam as its sandwiched

   core. This panel has a lot of advantages, such as good thermal preservation, anti-bacterial, anti-corrosion, high strength,

   excellent impact resistance and good weather resistance. This panel is best choice for incubator, even use in very bad

   environments, it can keep itself as new after 10 years.
   Hot galvanized trolleys and all frame of the machine adopts plastic painted, it keep the machine to use long years.
   Joint control of temperature, moisture and dampers to reduce temperature fluctuation.
• By the new heating method, the incubator can adjust heat automatically according to the environment temperature and

   the embryo growth cycle, keeping a stable temperature inside.
• With the damper hover control technology, the incubator can control ventilation accurately.
• New ventilation structure- Exhaust, air intake and enforced air cooling ducts are isolated from one another to replenish

   oxygen and dissipate heat at the late stage of incubation.
   Professional water cooling system for the incubator, which keeps the machine cooling very soon, especially for hot area.
• Auto-monitor temperature, dampers, stirring fans, egg turning and power supplies. When a disorder appears, it can send

   a sound/light alarm.
• The user can start the emergency control system to ensure incubation when the main control system goes wrong

Temperature precision display 0.01℃
Precision of temperature controlled 0.1℃
Range of temperature controlled 35--39℃
Humidity precision display 1%RH
Range of humidity controlled 30-75%RH
Precision of humidity controlled 2%RH
Angle of eggs-turning 41-45°
Setting time of eggs-turning 0-190minutes





(chicken eggs)

Number of Trolley Number of Tray Max.
Outside Size
hatcher EL-19200H 19200 4 128 5.7kw 3360x2300x2400


Hatching Rate 98% Large Scale Automatic Chicken Egg Incubator 19200 0
