|Product Name:||Pellet Machine, Pellet Mill||Application:||Livestock Feeds, Poultry Feeds, Fish Feeds|
|Function:||Producing Animal Feed Pellets||Voltage:||380V, Three Phase|
55KW Horizontal Pellet Mill Machine,
55KW Fish Feed Pelletizer,
horizontal ring die feed pellet mill

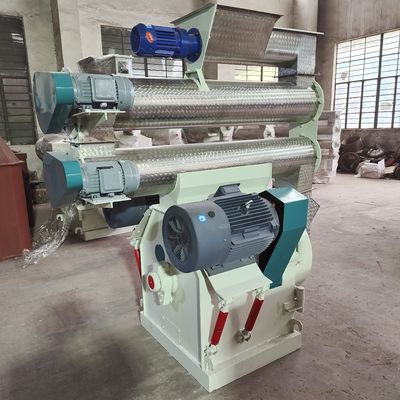

55KW Horizontal Pellet Mill Machine Animal Fish Feed Pelletizer
|Pellets size||Capacity||Main motor power||Feeder motor power||Conditioner
Distinguished pelleting stability
Unique double-timing belt driving and cooling system for motors output same torque simultaneously, sectional ring die clamper for fixing ring die onto rotor firmly, widened supporting area of main shaft are enabling long-time stable production.
Superior pellet quality
Conditioning system for longer retention time and more beneficial to gelatinization and sterilization of feed, contributing to consistent top quality products. Pellet size ranging from Φ1.5mm to Φ8mm.
Optimized feed-to-pellet deflector structure, widened ring die working area to enable consistent high output and low energy consumption.
Easy die change and roller adjustment, quick and precise operation; optional auto-lubrication system, saved labor; overload protection and door protection for human and machine safety.
◎HKJ series pellet mill adopts SPZ narrow belt drive system, high driving efficiency & stability, low maintenance.
◎This series pellet mill can produce pellets of diameter 1.5mm to 8mm.
◎Fixed type stainless pellets cutting blade, Easy adjusting & Quick detachable hold hoop type ring die
◎Feeding is controlled by frequency inverter.
◎It is used to produce high quality poultry, livestock, fish, shrimp feedstuff pellets.
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.
Q: I know little about feed machine and production line. How can I get start?
A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.
Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?
A: Our technician will get to your place and provide on-site installation instructions and operation trainings.
Q: What is your payment term?
A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
