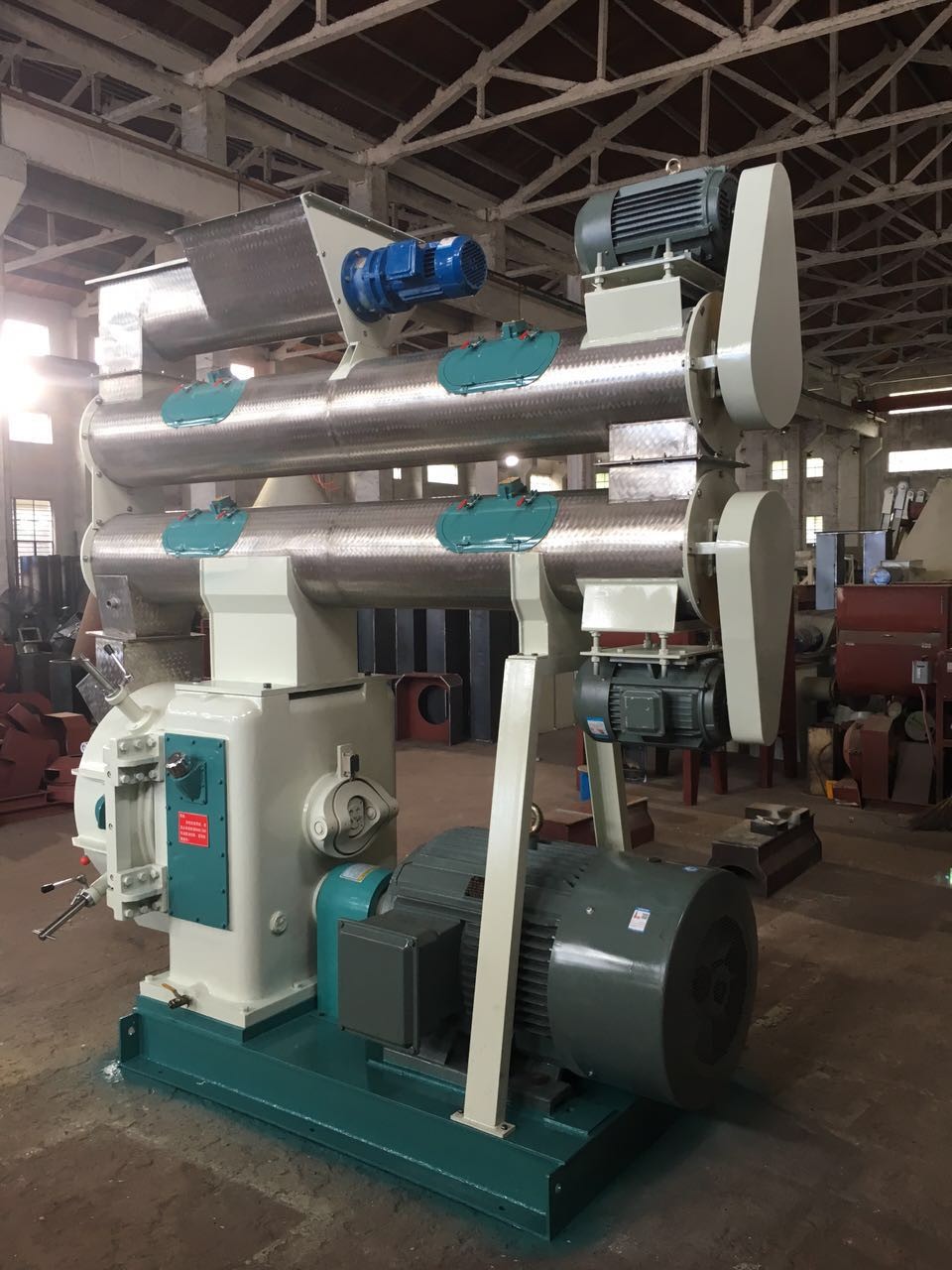

180kw 20th Ring Die Pellet Mill Animal Pellet Making Machine

Basic Information
Place of Origin: Wuxi, China
Model Number: SZLH578
Minimum Order Quantity: 1
Packaging Details: full container load
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 30 pcs per month
Detail Information
Product Name: Pellet Machine, Pellet Mill Application: Livestock Feeds, Poultry Feeds, Fish Feeds
Function: Making Animal Feed Pellets Voltage: 380V, Three Phase
Power: 160/180/200 Capacity: 20t/h
Color: Customized Type: Gear Drive
High Light:

20th Ring Die Pellet Mil

,

180kw Ring Die Pellet Mil

,

20th Ring Die Animal Pellet Making Machine


Product Description

180kw 20th Ring Die Pellet Mill Animal Pellet Making Machine



Model Inner diameter
of die
Pellets Capacity Main motor power Feeder motor power Conditioner motor power
SZLH-420 ¢ 420mm ¢1.5-¢8mm 1-12t/H 90/110KW 1.5KW 2.2KW
SZLH-508 ¢ 508mm ¢1.5-¢8mm 4-20t/H 110/132/160 1.5KW 5.5KW
SZLH-528 ¢ 528mm ¢1.5-¢9mm 4-21t/H 110/132/160 1.5KW 7.5KW
SZLH-578 ¢ 578mm ¢1.5-¢10mm 4-22t/H 160/180/200 2.2KW 7.5KW



Power drive system for optimal energy efficiency

The robust two-motor belt-drive system allows for smooth operation, low noise and optimal energy utilization. The improved drive system simplifies maintenance.



Cost-efficiency alternative thanks to small footprint, excellent performance

Superior compact design extremely slashes investment cost, enabling further line capacity expansion.

Low operation cost thanks to easy maintenance, resulting in increased up time.



Superior pellet quality

Long retention time in conditioner which contributes to sufficient mixing and gelatinization and resulting in hygienic and consistent good quality of shrimp feed.

Pellet size ranging from Φ1.2mm to Φ2.5mm, Starch gelatinization ≥45%.



○SZLH series pellet mill uses high accurate gearwheel drive, and quick detachable hold hoop type, high driving efficiency & stability, low noise.
○Stainless reinforced conditioner, Frequency inverter control feeder
○International advanced compensation type S-S spring coupling
○High performance tubular magnet

○Conditioner adopts advanced pipeline system and inlet pressure regulating valve



Q: Are you a trading company or a manufacturer?

A: We are a manufacturer with almost 30 years’ experience in this industry. Our products are sold to more than 100 countries.

Q: I know little about feed machine and production line. How can I get start?

A: please let us know your business plan, such as which animal feeds you want to produce, how many tons of feeds you will produce per day, how many raw materials you use and so on. We will design the whole process flow for you, and our engineer will optimize the structure according to your plant.

Q: We do not have experience on operation and maintenance of the production line. How can I install and run a feed factory?

A: Our technician will get to your place and provide on-site installation instructions and operation trainings.

Q: What is your payment term?

A: 30 % T/T in advance & 70% T/T before shipment or 100% L/C at sight
